Components of a pressure gauge
The pressure gauge has all the following components:
- Dial : It is a screen for displaying the measured pressure value. It is expressed in various pressure units such as psi , bar , mPa, kg/cm2, etc.
- Bourdon and pressure sensors
- Bourdon Tube is found on analog pressure gauges. Uses Bourdon’s principle of stretching and contraction.
- The pressure sensor found on digital pressure gauges is more complicated than analog.
- Connection point is the point for installing the pressure gauge into the pipe or air line system.
Pressure gauge type
Classification of pressure gauges according to measurement range is the most popular. The types of pressure gauges can be divided as follows.
- Vacuum Pressure Gauge : It is a gauge with a negative pressure range such as -1 to 0 bar.
- General pressure gauge (Nomal PRessure Gauge) : has a pressure range starting from 0 and up, such as 0-10 bar, 0-100 bar, or 0-600 bar, etc.
- Compound Pressure Gauge : has negative to positive pressure values such as -1 to 3 bars, -1 to 5 bars, -1 to 9 bars, etc.
Advantages of adding glycerin oil
Adding glycerin to the pressure gauge has the advantage of helping preserve the pressure gauge for a long time. Helps reading the constantly changing pressure values to be easier and smoother to read.
Read more: Pressure Gauge oil level | Pressure Gauge oil level (pakoengineering.com)

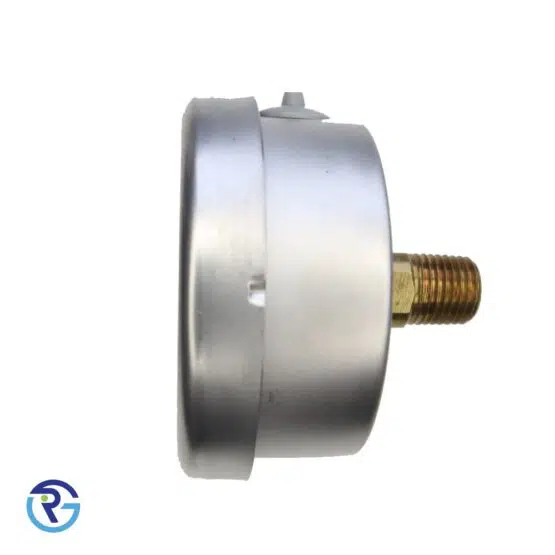

Pressure gauge, OCTA brand
at industrygauge We sell many models of OCTA brand pressure gauges, covering applications to measure water pressure, measure air pressure, or measure hydraulic pressure. There are various measurement ranges to choose from, from -1 bar, 10 bar, all the way up to 1,000 bar.
summarize
A pressure gauge is an important pressure measuring instrument that reads the pressure and sends the results to the user. To control production and prevent dangers that may arise from excess pressure, there are 3 different types according to the measurement range. You can also add glycerin to increase efficiency and preserve the use of the pressure gauge.
